SEAT Fumehood Blower

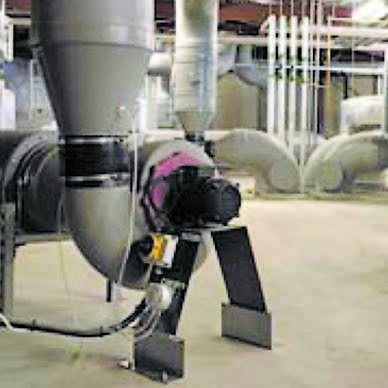

Designed to exhaust fumes from highly corrosive environments such as laboratory fume cupboards, battery rooms, chemical plants, etc. The all polypropylene construction and thick walls ensure maximum protection against acids and corrosion. 50 to 15000 m3/H and 10 to 1 800 Pa of total pressure.
  • PP Housings Single block strong high density UV treated and recyclable polypropylene (PPH) with no welded joint. All fan mounting hardware in stainless steel.
  • PP Wheels. Wheels electronically and dynamically  balanced to ISO 1940.
  • Motors: Direct drive, asynchronous, single or three phase, IP55. Single speed: three phase 230/400 V-50/60Hz, single phase 230V-50Hz.
  • Motor Support: Several options: no stand, metal stand constructed of epoxy coated sheet metal(1), polypropylene motor pedestal(2) or roof unit kit(3).
  • Temperature resistance: up to 60°C.
  • SEAT Series Fans are also available in ATEX Zone II
  • Fan Performancee based on tests conducted in accordance with AMCA 210-85 and ISO 5801


SEAT 25

Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 2500mch and the inlet and outlet dimension of 200mm. Available in ATEX version.

  • Airflow : 500-2500 mch
  • Total pressure : 60-1400Pa
  • Inlet : 200mm
  • Material : polypropylene
  • Driving : direct
  • Motor support options : metal stand, enclosed pedestal or kit roof unit
  • ATEX : available in Zone II
  • Moteur : single or three phase
  • Frequency : 50 Hz or 60 Hz, frequency inverter optional
SEAT 30
Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 4500mch and the inlet and outlet dimension of 250mm. Available in ATEX version.
  • Airflow : 1000-4500 mch
  • Total pressure : 80-800Pa
  • Inlet : 250mm
  • Material : polypropylene
  • Motor driving : direct
  • Motor support options : metal stand, enclosed pedestal or kit roof unit
  • ATEX : Zone II only with three phase motors
  • Moteur : single or three phase
  • Frequency : 50 Hz or 60 Hz, frequency inverter  optional

SEAT 35
Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 9000mch and the inlet and outlet dimension of 315mm. Available in ATEX version.

  • Airflow : 2000-9000 mch
  • Total pressure : 200-1500Pa
  • Inlet : 315mm
  • Material : polypropylene
  • Driving : direct
  • Motor support options : metal stand, enclosed pedestal or kit roof unit
  • ATEX : Zone II only with three phase motors
  • Moteur : single or three phase
  • Frequency : 50 Hz or 60 Hz, frequency inverter  optional
