 PLC Purification Systems

Two techniques, one instrument.

Introducing PLC Purification Systems by Gilson, HPLC + FLASH all in one. With the capability to purify compounds by preparative HPLC and FLASH on the same instrument, Gilson's PLC Purification systems will simplify and streamline compound purification for your lab - accelerating your research.

These customizable instruments are available in simple configurations for basic applications, but with a wide range of upgrade options to meet the demands of organic/medicinal chemists and experienced chromatographers.

Systems are controlled via an intuitive touchscreen interface, making it easy to write and edit methods, and adjust parameters on the fly. The standard fixed wavelength UV detector allows for an affordable detection for HPLC and FLASH, with available upgrades to DAD and/or ELSD. A fully integrated binary pumping system allows for smooth and linear mobile phase delivery, with an available upgrade to add quaternary gradient capabilities for more advanced separations. A fraction collector with space for three racks allows you to continue running longer without replacing test tubes.


PLC 2050, PLC 2250, PLC 2500 Purification Systems

Flow Rate / Max Pressure PLC 2050 50 mL/min,  with pressure up to 300 bar (4351 psi)
PLC 2250 250 mL/min, with pressure up to 230 bar (3336 psi)
PLC 2500 500 mL/min, with pressure up to 110 bar (1595 psi)
Flow Rate Performance 2% accuracy (with H2O degassed at 20°C)
Repeatability better than 0.5%
  Linear response to gradients from 2% to 98%
Binary Gradient (Standard) or Quaternary (Optional) Injection Automatic or manual look injection valve (optional)
Additional injection pump (optional)
Additional GX-241 Liquid Handler (optional)
Gradient Former Binary (standard)
Quaternary (optional)
System Protection Software with minimum and maximum pressures adjustable

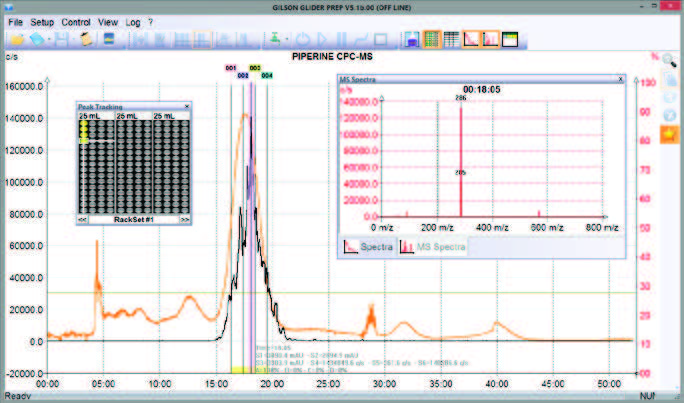

Control Touchscreen PC with Gilson Gilder Prep software
Storage Up to 32 methods in software memory and 80 GB of dard disk memory
AC Mains Supply Voltage 110V pt 240V. 50/60 Hz, 350 W (maximum)
Electrical Protection Delayed action fuses T 6.3A H 250 V~
Power Distribution TT or TN power system only, transient over-voltages accourding to installation category II, Class 1 equipment, requires mains socket plug with protective earth terminal
Valve Options Automatic backflush valve (optional)
Manual column switching valve (optional)
Column Holder Built-in tightening clamp for 10– 100 mm ID columns (standard)
Flash cartridges: 2.6 g – 1.2 kg (standard)

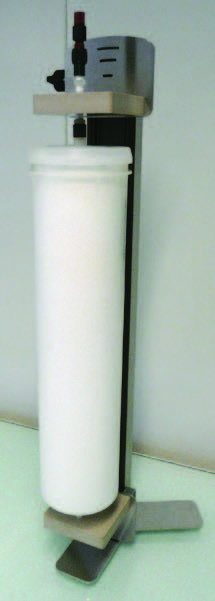

Additional standalone holder for flash/prep columns (optional):
Maximum height: 400 mm
Maximum diameter: 115 mm
Detector Options UV monochromator single wavelength detector, 254 nm by default (standard)
UV monochromator dual wavelength detector, 254/280 nm by default (optional)
UV detector, 4-wavelength DAD, 200– 400 nm (optional)
UV/VIS detector, 4-wavelength DAD, 200– 600 nm
(or 190– 840 nm) (optional)
VERITY® 1900 MS Detector (optional)
Collection VERITY® 1810 Conductivity and pH Monitor (optional)
Built-in ELSD (optional)
Several rack options available
Rack overlays for easy tube indentification (optional)
Funnel rack for a large and variable collection volume in external high-capacity containers
Fraction collector cover kit (optional)
