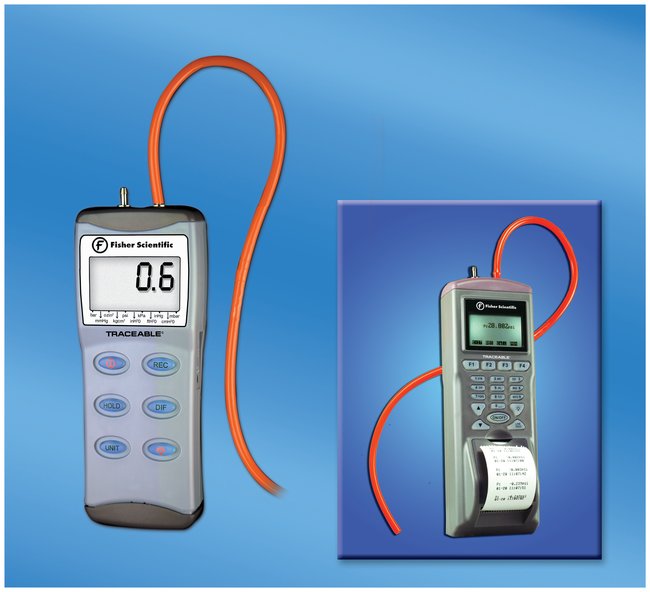

Fisherbrand™ Traceable™ Manometer Pressure/Vacuum Gauges
Description

Portable units measure and display differential pressure/vacuum in 11 different units (psi, mbar etc)

• Portable unit measures and displays differential pressure/vacuum in: psi, mbar, bar, cm/H2O, inch/H2O, feet/H2O, mm/Hg, inch/Hg, kg/cm2, oz./inch2 and kPa
• Response time: 0.5 sec.
• Accuracy: ±0.3% of full-scale between 0 and 50°C
• Readings are shown on backlit display with 0.625 in.H (1.6cm) digits visible from 6 ft. Feature DATA HOLD button to freeze display and capture readings
• Memory key recalls highest and lowest readings
• Differential feature calculates the difference between two readings
• Zeroing is achieved at the touch of a button
• Display times up to 99 hours, 59 minutes, 59 seconds which allows the user to record when maximum or minimum pressure is achieved

Printing Model

• Captures and stores up to 99 readings at the press of a button
• Datalogging permits capturing and storing up to 12,000 readings at intervals as short as 1 second or as long as 2 hours; prints sample number, current reading, date and time
• Manual memories and datalogger memories print without the need for a computer
• Computer output allows manual memories, datalogger memories and current programmable capturing to be streamed to a PC computer

Order Info

Dimensions: 7.125L x 2.75W x 1.125 in. H (18.1 x 7.0 x 2.9cm). Accepts tubing from 0.062 to 0.187 in. I.D. Nonprinting Model: 5 oz.; Printing Model: 12 oz.

Certifications

Individually serial-numbered Traceable Certificate is provided from an ISO 17025 calibration laboratory accredited by A2LA™; indicates traceability to standards provided by NIST™.
