PRODUCT CATEGORY

SimpleDist® System

C6000 SimpleDist - Complete System

The SimpleDist System from Environmental Express offers a safe, convenient option for ammonia and cyanide collection. The 12-position system eliminates most of the glassware associated with traditional systems. The system does not use cooling water or the cumbersome tubing that cooling water requires, making it easy to use and inexpensive to maintain and operate.

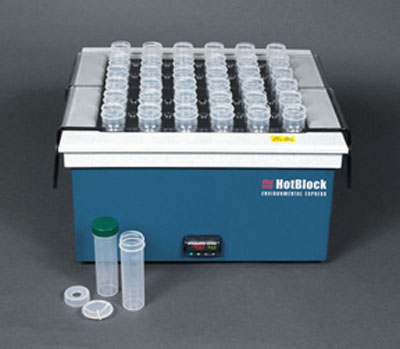

SimpleDist Complete Systems come with 12-place HotBlock and 12-valve Manifold Kit.

12-valve Manifold Kit: (for use with 12- or 36-well HotBlock)

  • 12-valve manifold
  • 12 flow control valves
  • 1 barb connector
  • 12 boiling tubes
  • 1 pack of (C6100) 25mL collection traps
  • 1 pack of (C6110) reagent addition tubes
  • 2 packs of (C6120) caps
  • 2 packs of (C6120A) black neoprene washers
  • 2 packs of (C6130) two-port cap inserts
  • 1 (C6142) tubing kit, 12 pieces
  • SimpleDist Systems and Manifold Kits come with 1 pack each of Snip & Pour reagents (C7005, C7015, C7125)

Block Specifications:

  • Footprint: 19.5"w x 11.25"d x 25"h
  • ​Shipping Weight: 40lb.
  • Nominal Sample Size: 50mL
  • Sample Capacity: 12
  • Temperature Range: ambient to 150°C
  • Block Temperature Uniformity: ±0.1°C
  • Sample Temperature Uniformity: ±0.1°C
  • Electrical: 120VAC, 6A (Also available in 240V, C6000-240
  • https://youtu.be/o1y18WAkt-0

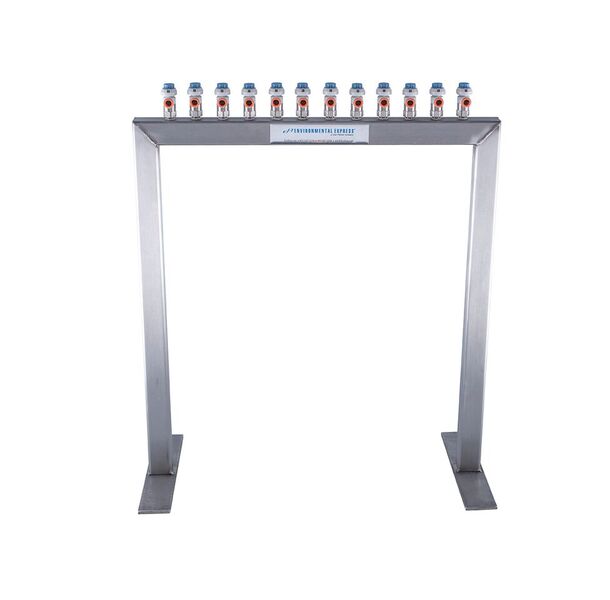

SimpleDist Manifold Kit


Turn your existing HotBlock into a SimpleDist. Stainless Steel Manifold Kits come with everything you need. The 12-Place kit can be used with the SC100 and the 18-Place kit for the SC154.


Item No. Description
C6200 SimpleDist - 18-Place Manifold Kit w/out Block
C6210 SimpleDist - 12-Place Manifold Kit w/out Block
G3050 1/8 HP Vacuum Pump 25.5" Hg,
