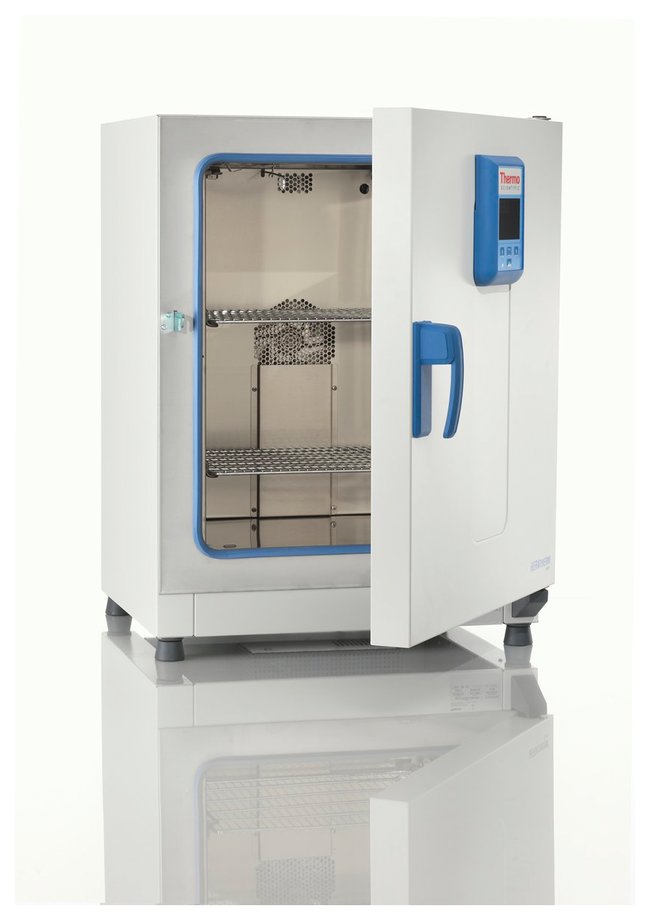

Heratherm™ Advanced Protocol Ovens

Description

Carry out multiple applications with Thermo Scientific™ Heratherm™ Advanced Protocol Ovens, which include a sophisticated timer, precise temperature uniformity and low energy-consumption. Featuring either mechanical or gravity convection technology with excellent temperature values, This flexible tool for the lab may be used for multiple applications.

 Features:
  • Broad temperature range—up to 330°C
  • Adjustable fan speed for application-related airflow in mechanical convection models (e.g. drying of powders)
  • High speed for expedited drying and heating, quick recovery, and optimal temperature stability and uniformity
  • Programmable controller for temperature ramps and dwells
  • Up to 10 programs can be saved, each with 10 discrete steps
  • Features electronically controlled fan speed and damper position
  • Programs can be repeated automatically
  • Access port allows the introduction of sensors for independent data monitoring
  • Simple calibration routine ensures temperature accuracy over time
  • Boost function enables rapid heating up—no need to operate the oven 24/7 (not available in large capacity units)

Order number   51028124 51028125 51028126
Model   OMH60 OMH100 OMH180
Convection technology   Mechanical convection Mechanical convection Mechanical convection
Temperature range °C 50 °C1 - 330 °C 50 °C 1 - 330 °C 50 °C 1 - 330 °C
Spatial temperature deviation at 150 °C ± 1.5 °C ± 1.3 °C ± 1.5 °C
Temperature deviation over time at 150 °C ± 0.2 °C ± 0.2 °C ± 0.2 °C
Footprint m2 / sqft 0.3 / 3.2 0.36 / 3.9 0.47 / 5.1
Chamber volume L / cuft 62 / 2.2 97 / 3.5 170 / 6.1
Dimensions chamber, mm
(W x H x D)		 354 x 508 x 343 464 x 608 x 343  464 x 708 x 518
  exterior 2, mm
(W x H x D)		 530 x 720 x 565  640 x 820 x  640 x 920 x 738
Number of shelves supplied / max ก.พ.-13 ก.พ.-16 ก.พ.-19
Max. shelf load kg / lb 25 / 55 25 / 55 25 / 55
Rated voltage / frequency V / Hz 120 / 60 208-240 / 60 208-240 / 60
Rated power / max. current W / A 1440 / 12 3360 / 14 3360 / 14
Energy consumption at 150° C  W 275 389 448
Weight kg / lb 44 / 97 55 / 121 69 / 152
Order number   51028115 51028116 51028117
Model   OGH60 OGH100 OGH180
Convection technology   Gravity convection Gravity convection Gravity convection
Temperature range °C 50 °C 1 - 330 °C 50 °C 1 - 330 °C 50 °C 1 - 330 °C
Spatial temperature deviation at 150 °C ± 2.5 °C ± 2.5 °C ± 2.9 °C
Temperature deviation over time at 150 °C ± 0.3 °C ± 0.3 °C ± 0.3 °C
Footprint m2 / sqft 0.3 / 3.2 0.36 / 3.9 0.47 / 5.1
Chamber volume L / cuft 61 / 2.15 99 / 3.6 168 / 6.05
Dimensions chamber, mm
(W x H x D)		 328 x 480 x 389  438 x 580 x 389  438 x 680 x 564
  exterior 2, mm
(W x H x D)		 530 x 720 x 565  640 x 820 x 565 640 x 920 x 738
Number of shelves supplied / max 2 / 13 2 / 16 2 / 19
Max. shelf load kg / lb 25 / 55 25 / 55 25 / 55
Rated voltage / frequency V / Hz 120 / 60 120 / 60 120 / 60
Rated power / max. current W / A 1730 / 14.4 3360 / 14 3360 / 14
Energy consumption at 150° C  W 170 210 290
Weight kg / lb 44 / 97 55 / 121 69 / 152
