SmartReader 96, Microplate Absorbance Reader

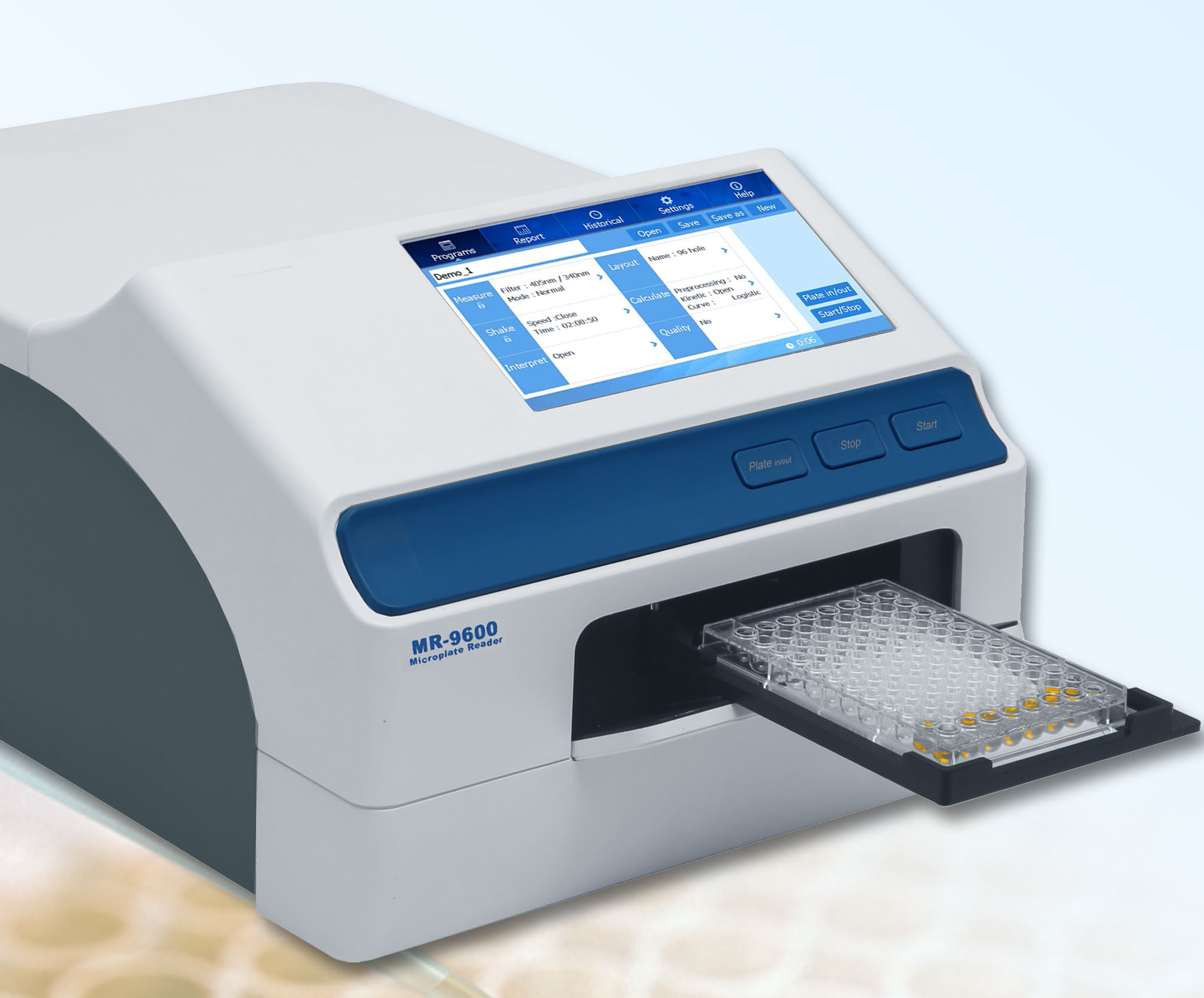

The Accuris SmartReader 96, models MR9600 and MR9600-T are welcome additions to any lab that is routinely measuring concentration or absorbance in 96 well plates.  The 7 inch touch screen, intuitive software and graphical interface make these instruments easy to use as a standalone reader (a separate computer and additional software is not required)

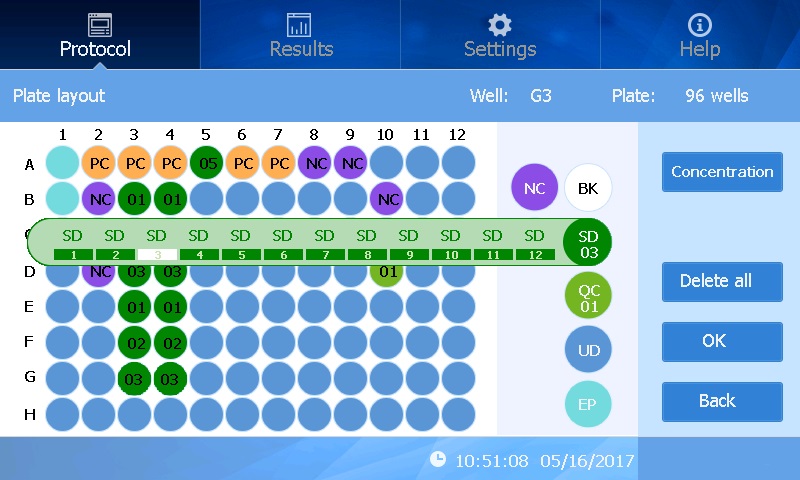

  • Intuitive, 7 inch color touch screen control panel
  • Filter based system with wavelength range from 340 to 750nm
  • Operates as a stand alone system, with USB flash drive drive for data transfer
  • Absorbance range: 0.0 to 4.000 Abs
  • 8 channel vertical optical path, with zero dispersion
  • Integrated, multi-speed plate shaker
  • MR9600-T  features temperature-controlled plate incubation
The MR9600 comes complete with 4 popular filters: 405,450,492,630nm and twenty six additional filters are available separately to cover a full range from 340 to 750nm. The integrated filter wheel allows up to 8 filters to be loaded at once, and filters can be selected during programming. Up to two filters can be used for 2 measurements of the sample plate, for calculated comparisons. Kinetic calculations can be performed by setting multiple readings.


Accuris SmartReader 96
Control and Display
7 inch touch screen
(800 x 480 pixels)
Light Source
Quartz-halogen lamp 6V/10W
Wavelength range
340-750nm (405, 450, 492
and 630 nm filters included)
Half-Bandwidth of filters
Readout Range
0~4.000 Abs
Linearity (405nm)
0~2.000 Abs <+1%
0~4.000 Abs <+2%
CV</= 0.2% (0-3) Abs
CV</= 01.0% (3-4) Abs
Test Speed
<6 sec. for 96 well plate
Incubator (MR9600-T)
Temp control from ambient +5°C to 50°C
3 modes: slow, medium, fast
User Interface
Integrated software,
touch screen control
200 programs,
100,000 test records
USB ports for PC, printer,
mouse and flash drive
29.5 x 44.0 x 22.5 cm
11.6 x 17 x 8.75 inches
10 kg
