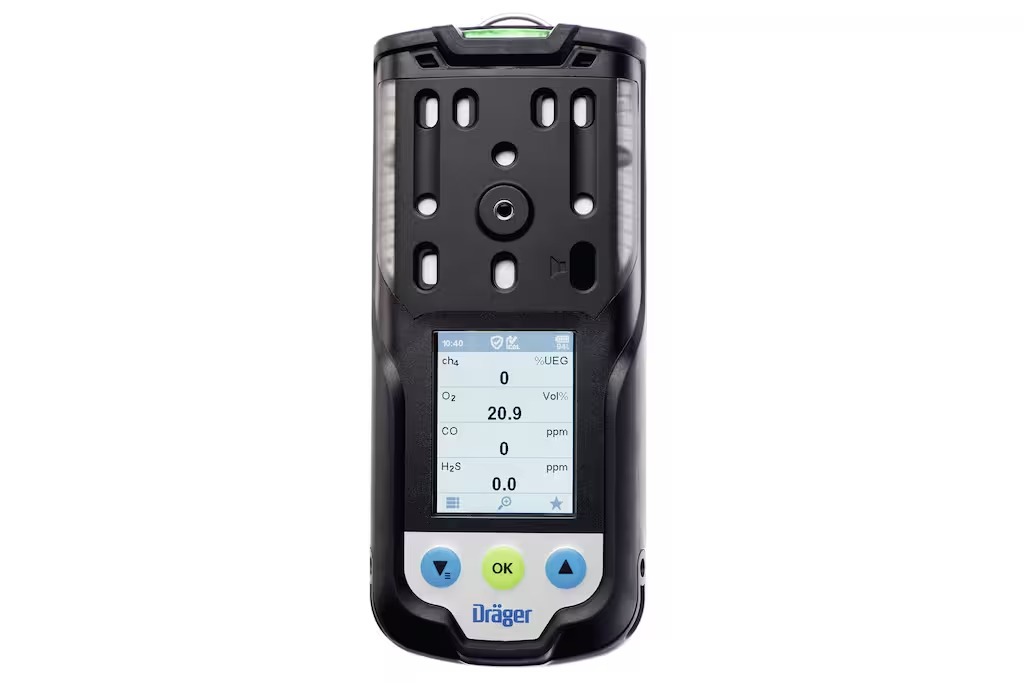

Dräger X-am® 3500

​The Dräger X-am® 3500 was especially designed for clearance measurements and personnel monitoring applications. The 1 to 4 gas detector reliably detects flammable gases and vapors as well as O2, CO, H2S, NO2 and SO2. The innovative signaling design and extensive range of accessories ensure optimum safety and easy handling.



Technical Data

Key Facts

Measurable gases
Ex, O2, CO, H2S, NO2, SO2, + (choice out of > 40 sensors)
Sensorports
4
Number of gases
1 - 5
Applications
Personal Air Monitoring + Confined Space Entry
Sensor technology
CAT + EC

Technical Data

Operation time
>12h
Dimensions (W × H × D)
0.16x0.43x0.14 ft
Weight
0.49 lb
Battery type
NiMh
Degree of protection (IP class)
IP 67

Features

Dual sensors
✓
CatEx Fullrange
✗
D-Light
✗
Internal pump
✗

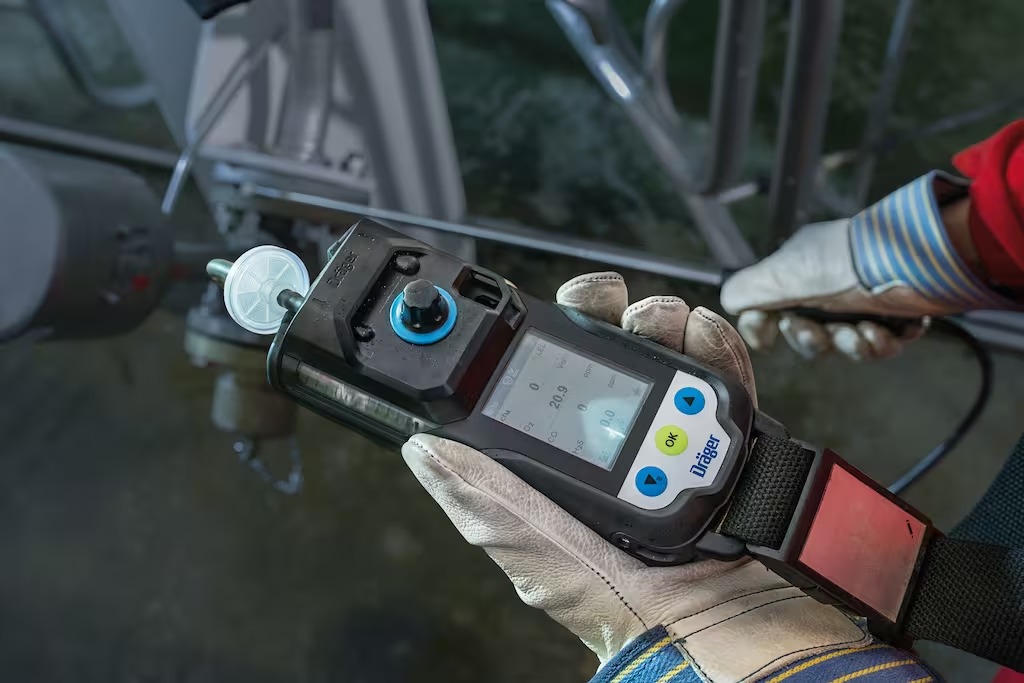

X-am Pump
✓
X-zone 5500 Area Monitoring
✓
Bump Test Station
✓
X-dock Station
✓

Approvals

ATEX
I M1 Ex da ia I Ma, II 1G Ex da ia IIC T4/T3 Ga
IECEx
Ex da ia I Ma, Ex da ia IIC T4/T3 Ga
c CSA us
Class I Div. 1 Group A, B, C, D, E, F, G T4/T3, A/Ex da ia IIC T4/T3 /Ga
CE
✓
GOST (EAC)
true
Performance approval
✓
Shipping approval (MED/DNV GL)
✓
