KNF Diaphragm Vacuum Pumps and Compressors

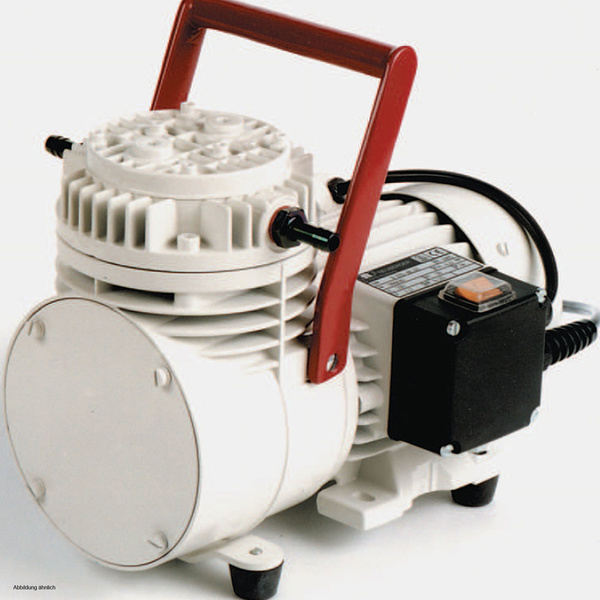

Pumps Model PM25770-022

PM25770-022 diaphragm pumps are single-head, dryrunning devices used in a wide range of laboratory
applications. They transfer, compress and pump down without contamination. The pumps are assembly with fine control valve with gauge at suction and pressure side for control desire flow rate and vacuum level.
  • 100% oil-free transfer
  • Pure transferring, evacuation and compression of gases
  • Version for adjustable flow rate or vacuumpressure level by fine control valves
  • Maintenance-free
  • Environmentally friendly
  • Gastight, leakage rate approx. 6 x 10-3 mbar x l/s, not tested in serial production.
Application in Laboratory
  • Degassing
  • Desiccation
  • Filtration
  • Fluid aspiration
  • General Purpose for suction or pressure application



Material in contact with the pumped media
  • PM25770-022 Aluminium CR Stainless steel
Technical data: PM25770-022
  • Delivery (l/min)1) 15
  • Ultimate vacuum (mbar abs.) 100
  • Operating pressure (bar g) 4
  • Connectors for tube (mm) ID 6
  • Permissible gas and
  • ambient temperature +5...+40 °C
  • Mains 230V/50Hz
  • Motor protection IP 20
  • Power P1 100 W
  • Operating current 0.7 A
  • Weight 4 kg
  • Dimensions (excluding valve and gauge) 203/194/145  LxHxW (mm)
  • With thermal switch
  • Motors with other voltages and frequencies on request.
