PRODUCT CATEGORY

Solid Phase Extraction

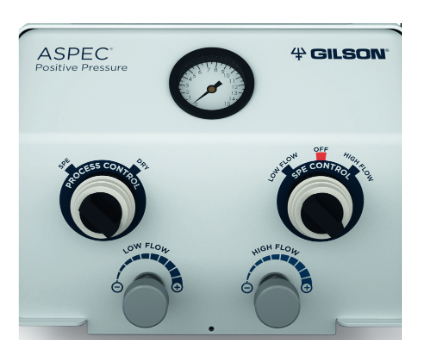

ASPEC® Positive Pressure Manifold

Make Your Lab Life Easier

The ASPEC® Positive Pressure Manifold for solid phase extraction (SPE) provides uniform and
consistent flow rate control for the cleanup of low- or high-viscosity samples, improving reproducibility and recovery. The ASPEC Manifold incorporates into laboratory workflows, providing a fast and simple way to prepare samples for later analysis.

Flexible To Your Science

Single module compatible with 1 mL, 3 mL, 6 mL tabbed or tabless cartridges and
96-well plates, the ASPEC manifold will fit your SPE needs.

Get The Most From Your Investment

A cost-effective approach for clinical, forensic, and food or beverage testing laboratories. It is also an ideal choice for SPE cleanup prior to LC-MS for bioanalysis.Benefit From More Sample Control

The ASPEC Manifold offers more sample control over traditional vacuum manifolds, providing greater confidence in the data generated.

  • Easy to set-up and use: Only one gas source at all pressures. No training is required to operate.
  • Reproducible extractions: Positive pressure fine regulators improve flow control, and reproducibility.
  • Parallel extractions: Increase daily throughput by accelerating sample cleanup and reducing time spent in front of the instrument.

ASPEC®  POSITIVE  PRESSURE  MANIFOLD  SPECIFICATIONS
Site Requirements   Environment: Indoor use only. Set unit inside a hood whenever possible with approximately 5 cm free space above and behind.
  Inert Gas Supply: Maximum pressure of 15 psi. Use with 1/4 in. (OD) tubing.
Liquid Contact    Gasket: Neoprene
Materials   Locator Plate: Ertalyte
Physical Specifications   Weight: 14.54 kg (32 lbs.)
  Dimensions (W x D x H): 33 cm x 48.3 cm x 44.2 cm (13 in. x 19 in. x 17.4 in.)
